RX Solutions EasyTom CT Scanning Systems

Gain full visibility of internal features or components of your parts with this 3D X-ray measurement and analysis system. The most compact and powerful CT system for small to medium-sized parts

The latest compact and affordable CT scanner for manufacturing industry. Measure and identify faults in manufacturing and assembly,  add a CT scanner to your quality suite onsite or we provide sub-contract CT scanning services.

Overview

Compact high-performance CT scan systems, performing computer tomography from micro to nano-scale analysis in manufacturing industries.

CT scanning has been used in Medical science for a long time. Our CT scanners are compact and affordable for use in manufacturing settings. Allowing the user to not only see straight through their components or full assemblies but to also measure and spot defects.

Sempre is now partnered with RX solutions to be able to offer the full system for your own measurements as well as sub-contract scanning services, so you can pick and choose when you need a scan and receive a full 3D scan and point cloud of your part. This can also be used in CAD for reverse engineering – both the inside and outside of a component.

View and measure inside parts or assemblies including:

  • composite materials
  • injection mouldings
  • plastic assemblies

Features

Features

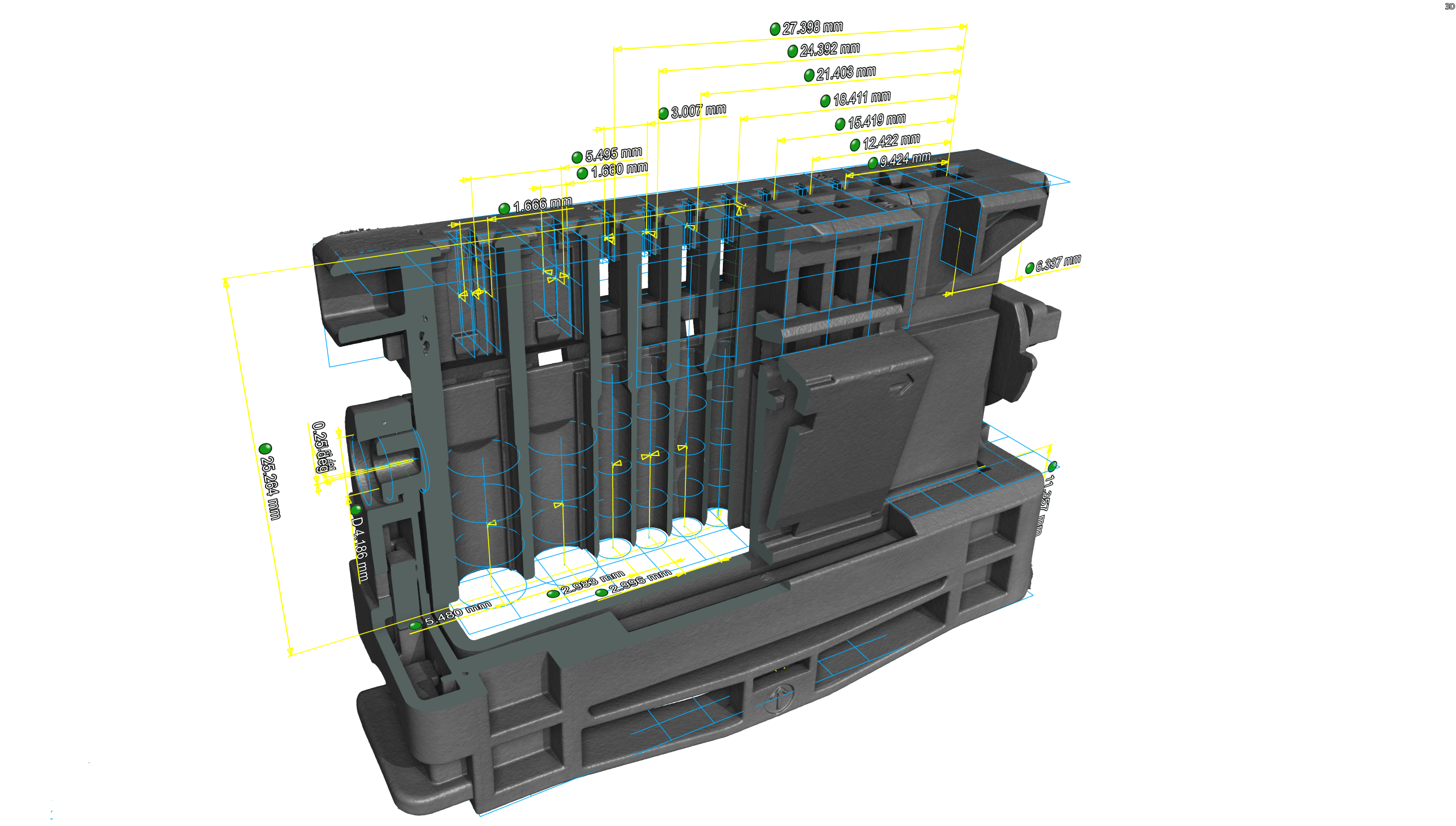

ct scan manufacturing annotated
  • Dimensional Measurement: Avoid assembly issues due to warped parts and get precious information during the production process.
  • Geometry: Part’s geometry can be easily assessed using computed tomography.
  • Pores & Cavities: Porosities can lead to serious issues in casting parts. Detect them easily with CT and get all the information about size and shape.
  • Cracks: Cracks that weaken the parts are identifiable in tomography and can be located with 3D rendering
  • Material Analysis: Micro structure analysis Fiber Analysis Welding characterization Assembly inspection Failure analysis
  • Geometry & Metrology: Wall – thickness analysis Comparison Reverse engineering

Applications - Nano Technology

Nano-CT is a high resolution technology for 3D imaging at sub-micron resolution. The technical concept is based on a further development of micro-CT technology. By improving the spatial resolution, structures at a cellular level become visible.

Nano-CT on a composite sample as follows : – resolution of 0.7 μm – sub volume extraction also called ROI (Region of Interest)

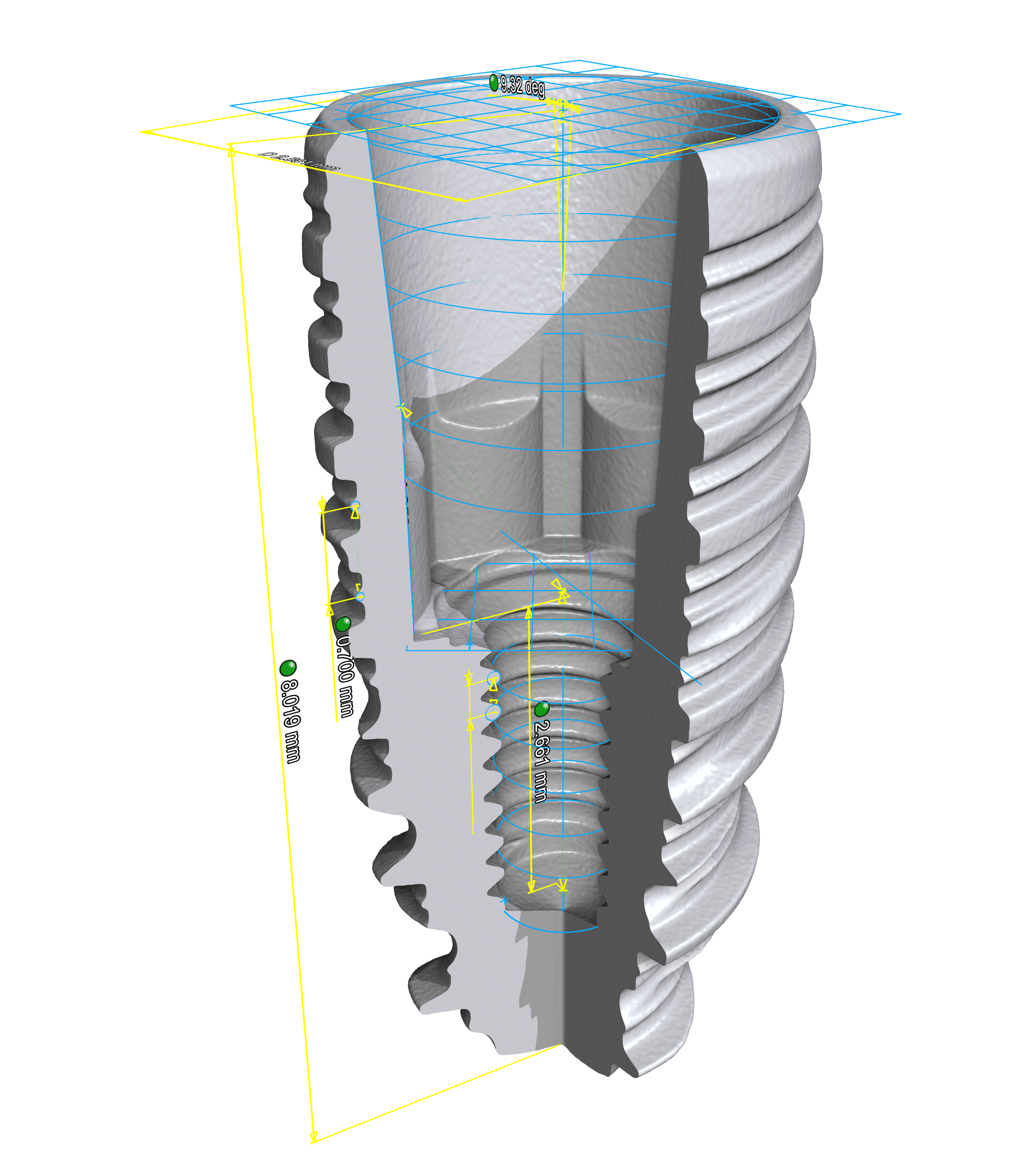

ct scan manufacturing annotated
