GelSight Elastomeric Imaging Range

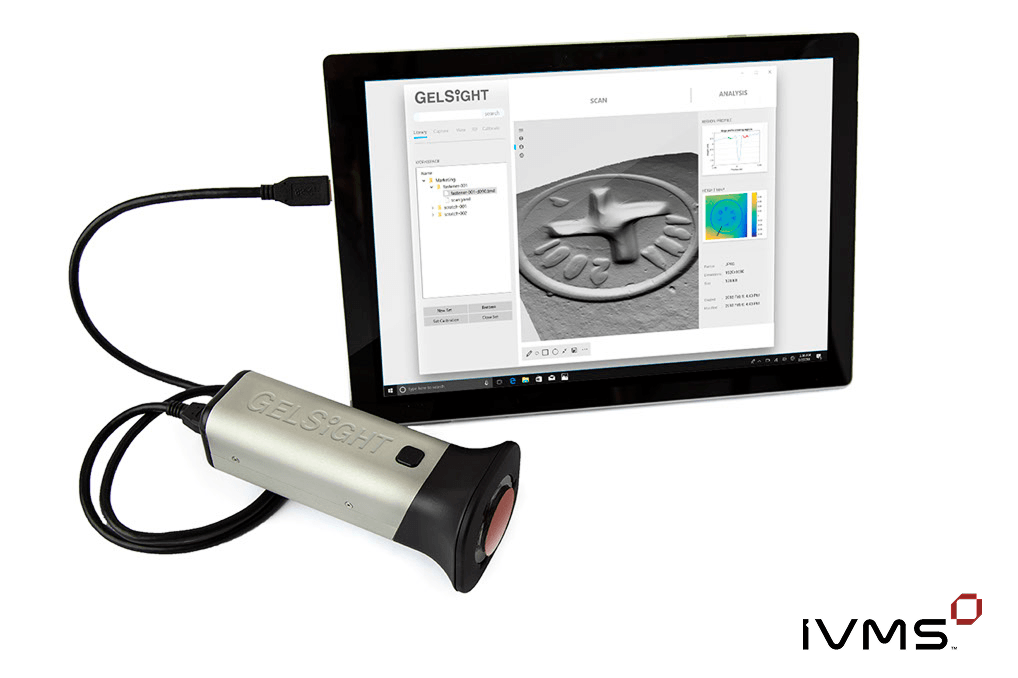

Handheld 3D topography measurement systems

Digital imaging-based tactile intelligence solutions. 3D sensing technology offering highly precise and rapid surface characterisation, enabling various surface measurement applications and robotic sensing capabilities.

gelsight surface measurementgelsight surface measurement
Series 2 scanning (1)Series 2 scanning (1)
Digital-TouchDigital-Touch
Profile geometryProfile geometry
Series 2 with gel (1)Series 2 with gel (1)

Overview

Elastomeric Platform

At the core of GelSight’s digital touch technology is its exclusive elastomeric platform.

This generates a soft, high-resolution tactile sensor that mimics human skin, conforming to the contours of an object upon contact and accurately recording the surface’s topography.

Digital Touch

Information obtained through the elastomeric tactile sensing platform is instantly analysed within the exclusive operating system, delivering comprehensive 3D data on surface attributes, irrespective of lighting conditions or material reflectivity – ensuring precise surface characterisation.

Where It’s Used

The GelSight tactile sensor is handheld and perfect for use on the shop floor, and when measuring larger objects where access may be limited.

This portable handheld 3D topography measurement system is ideal for gauging surface scratches and defects, including those on fuselages.

The 3D surface inspection system offers an accessible approach to detecting and measuring surface dents and surface scratches.

  • Reduce waste and scrap with NDT
  • Improve throughput for high-cost parts
  • Enhance traceability & audit trail of data

Features

Features

Gelsight scratch detection Elastomeric Imaging
  • Precise – Lab-grade performance in the palm of your hand.
  • Fast Real-time surface analysis enables rapid decisions.
  • Repeatable – Reduces human error.
  • Traceable – Enables documentation and audit trail.
  • Versatile – Enables measurements on any material, under any lighting, in any. location

Applications

  • Hole diameter measurement
  • Scratch and defect measurement
  • Fastener flushness
  • XYZ dimensional measurement
  • Weld inspection
  • Pit detection/corrosion analysis
  • Roughness measurement
  • Radius of curvature measurement
  • Replica measurement with image transformation
  • Shot peen analysis
  • AI and perceptual quality
  • Operator mode

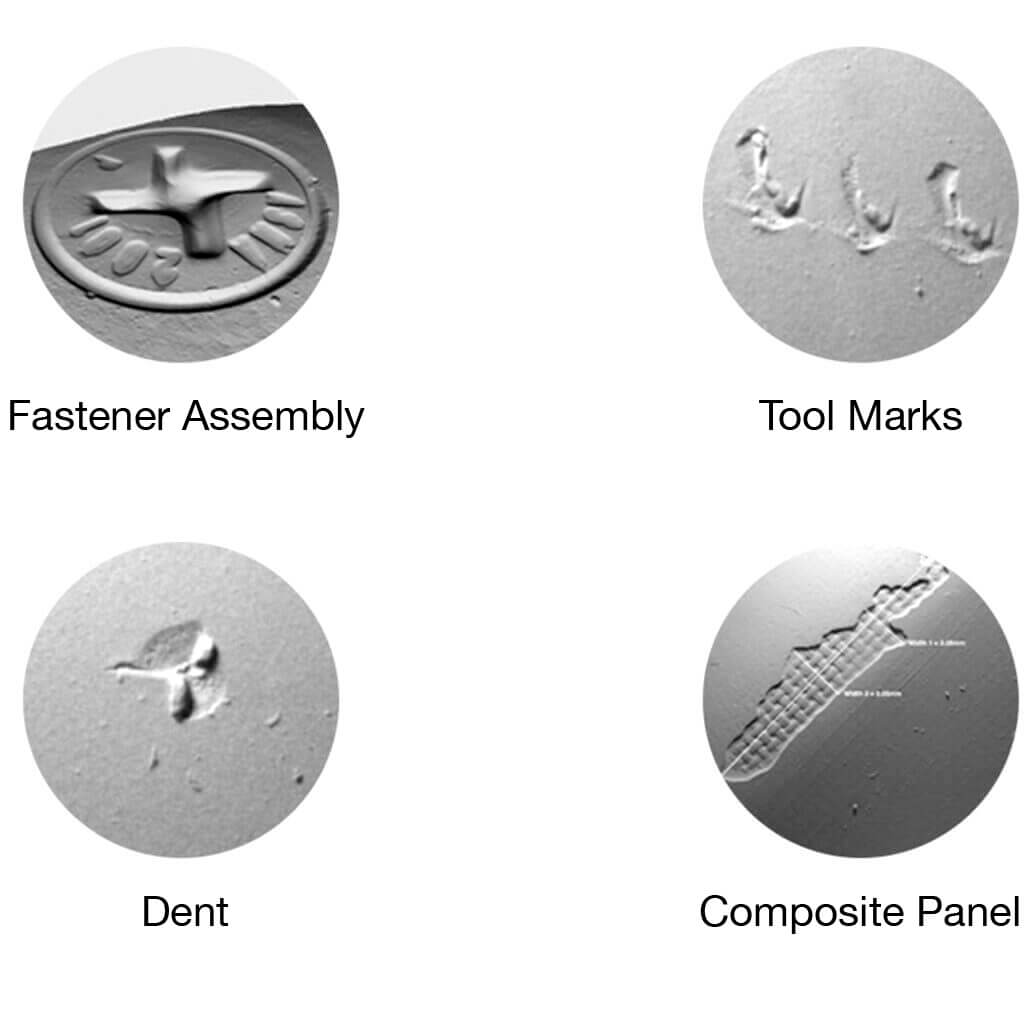

Gelsight scratch detection Elastomeric Imaging applications

Product Range

Product Range

Handheld 3D topography measurement system including scratch defect inspection

High-resolution handheld 3D topography measurement system, assessing surface and profile roughness

Designed to perform in the most demanding environments, from production line to out in the field.

Industries

Aerospace

Aerospace

Automotive

Automotive

Medical Devices

Medical Devices

Electronics

Electronics

Precision Engineering

Precision Engineering

Sheet Metal

Sheet Metal
