Two-axis measuring system designed for panel or sheet type products up to 2 inches (50mm) thick.

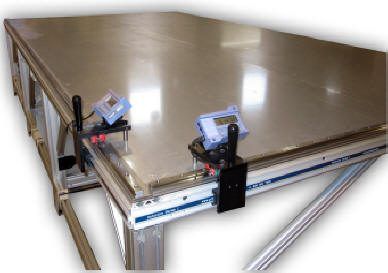

ProTable XY is a precision two-axis measuring system engineered for accurate measurement of large panel or sheet-type products up to 2 inches (50 mm) thick and weighing up to 120 lbs (55 kg) when evenly distributed.
Built for durability and precision, it features a 0.375-inch (9.5 mm) thick hard-anodised cast aluminium plate surface, with an optional stainless steel upgrade. Each axis is guided by a robust steel linear bearing system, while full-length 0.250-inch (6 mm) stainless steel back fences ensure consistent positioning.

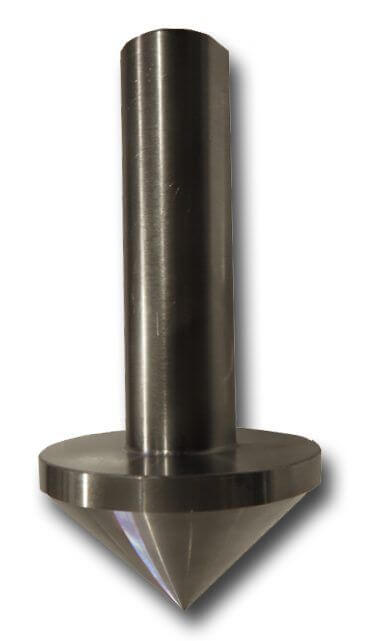

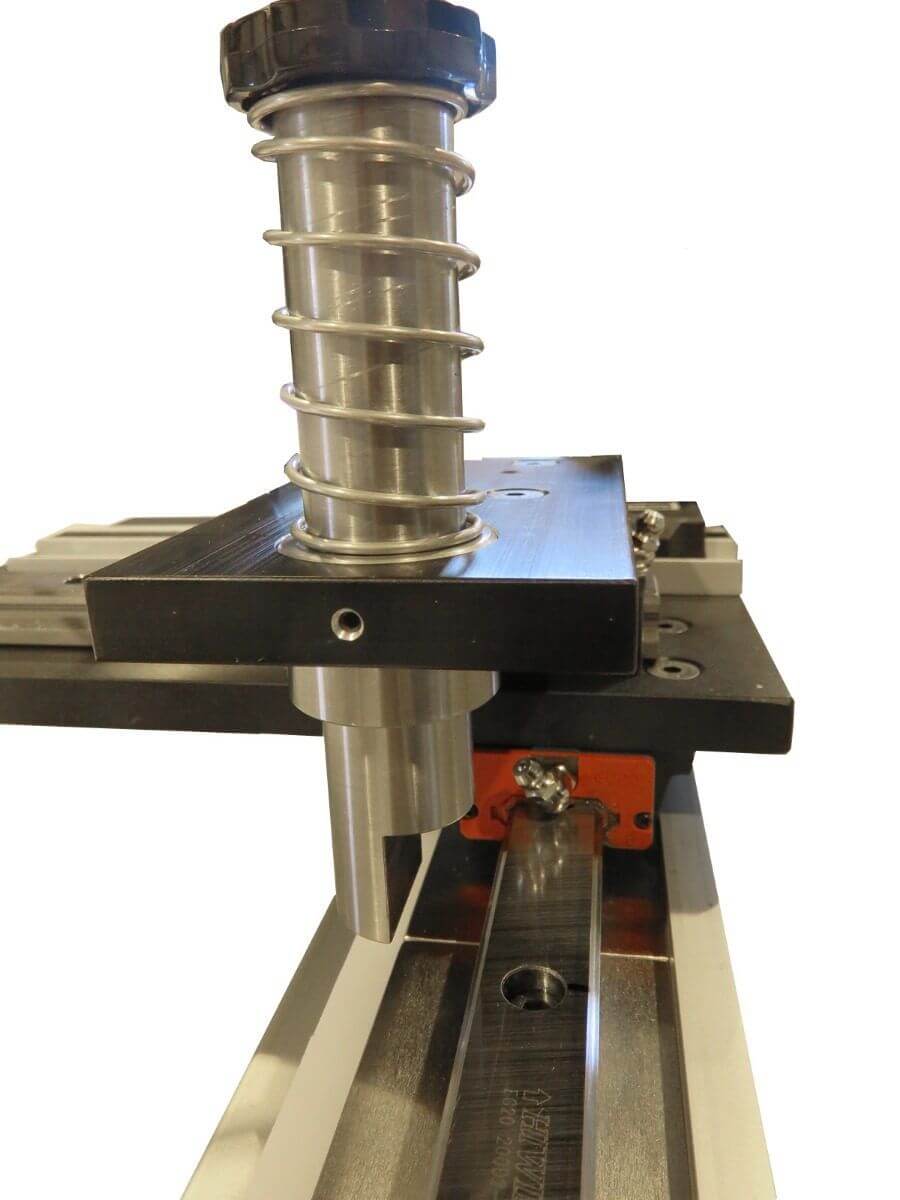

The moving measuring pins are crafted from hardened steel, with stainless steel and custom options available. Constructed from high-quality aluminium extrusion and steel bearings, the ProTable XY delivers smooth operation while minimising orthogonal, Abbé, and cosine errors, making it ideal for demanding industrial measurement applications.
Model | Measurement Range | Accuracy |
|---|---|---|
ProTable XY 2×3 | 25 x 30 inches (635 x 760mm) | Better than ± .005in (± .13mm) |
ProTable XY 2×4 | 25 x 50 inches (635 x 1270mm) | Better than ± .005in (± .13mm) |
ProTable XY 4×8 | 50 x 100 inches (1270 x 2540mm) | Better than ± .005in (± .13mm)
|
Microridge
Transfer data wirelessly from any hand tool to any software at the press of a button!
MobileCollect offers the tools you need to send each measurement result in real-time, with 100% accuracy, at the press of a button.
The software simplifies the process of transferring measurement data from a gauge to your SPC/DAQ application. Whether connecting a single gauge to a spreadsheet, or hundreds of measuring instruments to a cloud-based quality control monitoring application.Â
